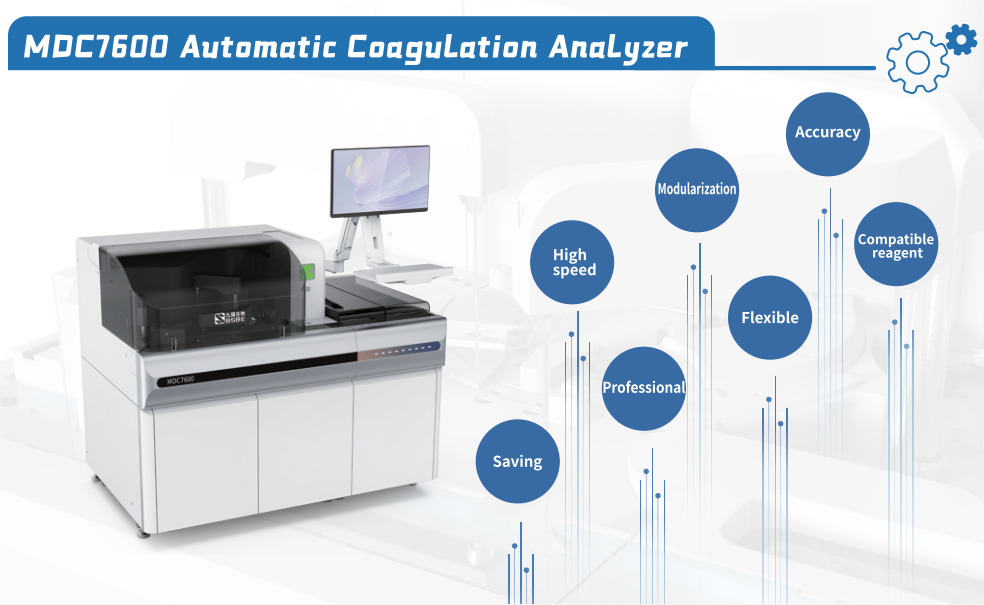

MDC7600 Automated Coagulation Analyzer
Principle: Optical Turbidity
Method: Clotting Method, Immunoturbidimetric Method, Chromogenic Substrate Method.
Throughput: 408T／H
Wave Length: 340nm, 405nm, 575nm, 660nm, 700nm, 800nm
Sample Position: 155 sample positions,130 normal sample positions
Emergency Function: 20 emergency positions, flexible STAT emergency function, 5 fixed emergency positions:emergency sample priority detection
Reagent Position: Total 47 reagent positions: 42 refrigerated reagent positions, 5 room temperature reagent positions
Micro-sampling: Minimum 5μl sample size Reagents, sampes, and sample rack barcode identification, convenient and fast.
Barcode Reading: Reagents, samples, and sample rack barcode identification, convenient and fast.
Interface: Serial port RS232, network port
Light Source: LED light + filter, free maintenance
Data Transfer: Single and two-way LlS data transmission
Printing: Direct printing with external printer
Host Size: 1550mm*1000mm*1300mm
Instrument Weight: 315KG
Operating Environment: Ambient temperature:10*-30*c Relative humidity: 30%-70% Atmospheric pressure:86.0kPa-106.0kPa
Power Requirement: Voltage :~220V;frequency:50Hz
